Tube Bending Machine XOTS 35

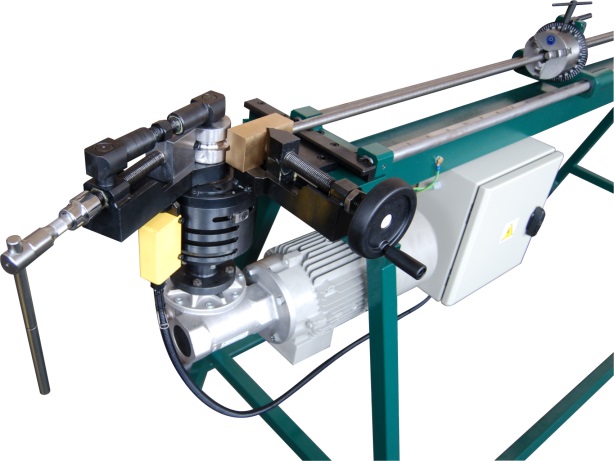

Tube Bending Machines XOTR 35

The XOTS 35 is designed for bending both thin- and thick-walled tubes up to Ø 35 mm. Due to its easily programmable control and light construction, this bending machine is particularly fit to piece and small series production. However, its concept also makes it suited for the needs of professional industrial manufacture.

XOTS 35 is equipped with a control unit enabling successive selection of 3 bending angles to be set by mechanical stops.

Thanks to its design the XOTS 35 enables precise and high-quality cold tube bends. The control may be both in manual and automatic mode.



SEND INQUIRY



Bending Machine in the Basic Design

In the basic design, the bending machine XOTS 35 comprises:

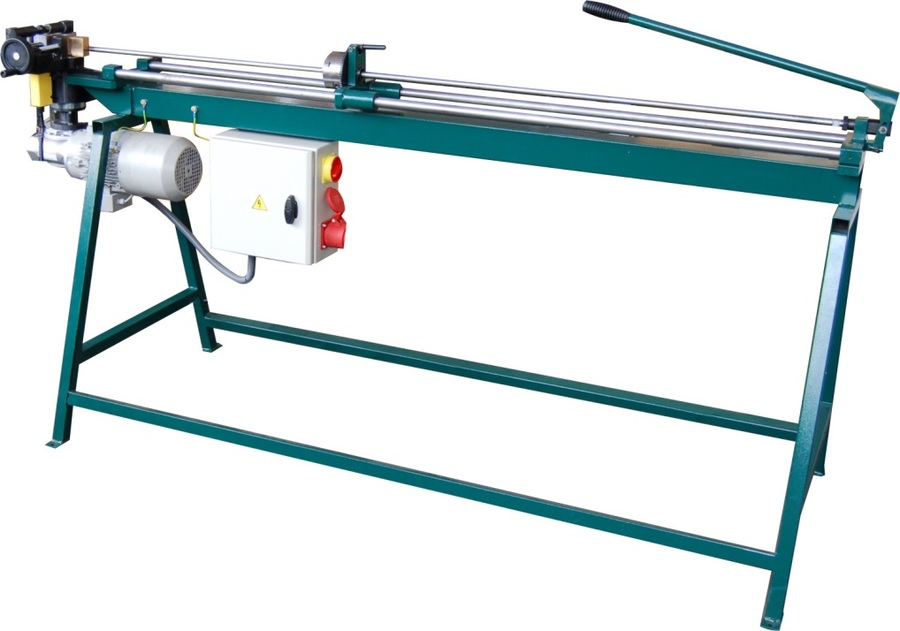

Tube Bending Machines XOTR 35
  • Support stand equipped with guide, clamping chuck and the mechanism for manual release of mandrel
  • Bending unit (motor with gearbox and torque multiplier)
  • Spindle for placing  bending segments with inner hole 20 mm
  • Bending arm with mechanical clamping of tube
  • Fixed arm with tip and the set-screw of backing slide element
  • Mandrel rod
  • Electric control cabinet
  • Control console on separate stand

Technical Parameters

Range of bent diameters [mm]

20 ÷ 35

Bending segments for tube diameters

[mm]

20

25

28 30

32 35

Atyp.

6÷35

["]

½

¾



1



Bend diameters on tube axis [mm]

60

75

90

110

18÷110

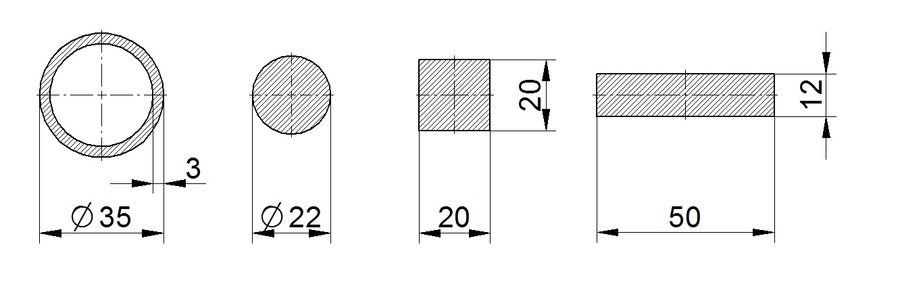

Max. cross-section of bent materials

XOTS35_PROFILY

Dimensions w x l x h [mm]

860 x 2500 x 1060

Max. length of clamped tube

(up to the beginning of 1st bend [mm]

1900

Weight [kg]

140

Input [kW]

1.8

Supply voltage [V]

400

Output speed [min-1]

4.7

Accessories of segments for thin-walled tubes

  • These accessories enable to clamp and bend thin-walled tubes with the proportion D/t > 15.
  • In order to avoid tube deformation, it is necessary to use a profile pair of rollers and one firm or ball mandrel for every thin-walled tube.

Atypical segments

  • In case of special requirements by a customer, it is possible to deliver atypical segments outside the serial production.
  • We also produce segments for the bending of square tubes, flat ovals and sectional steel.
