Designing

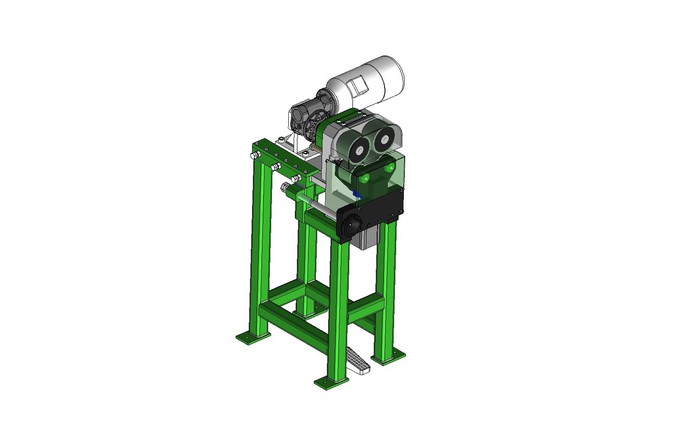

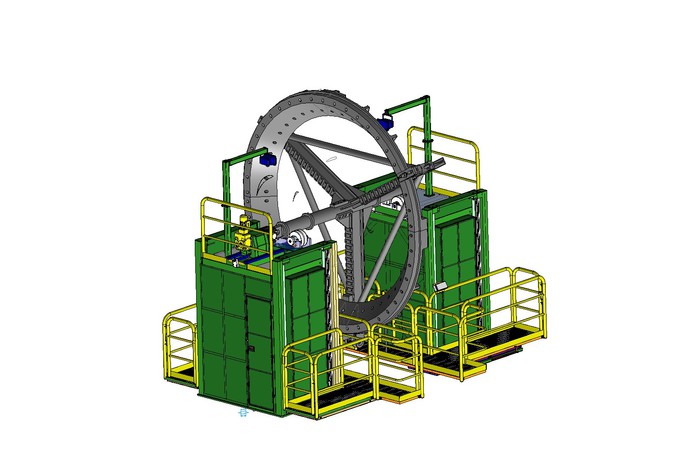

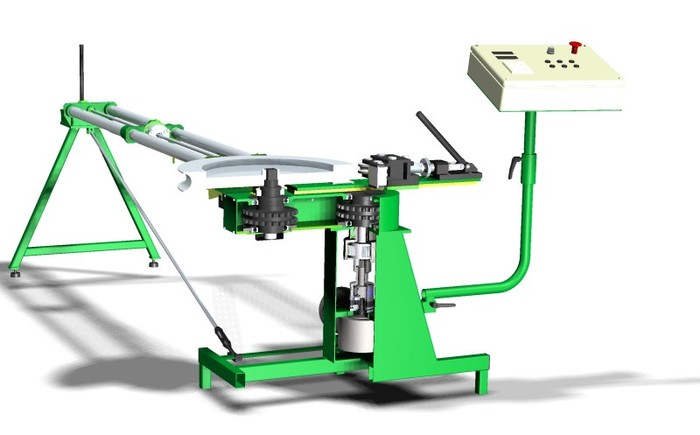

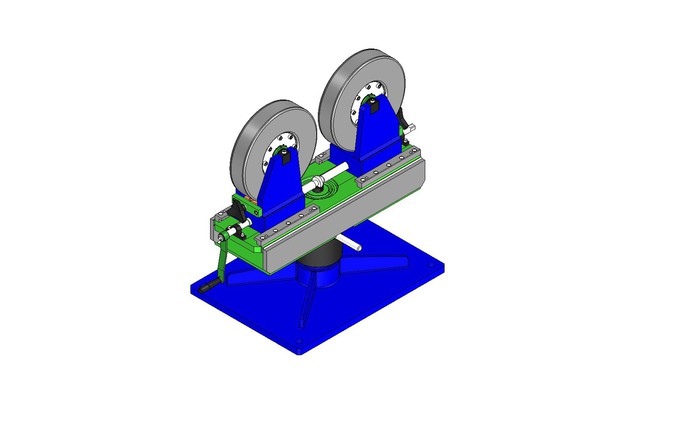

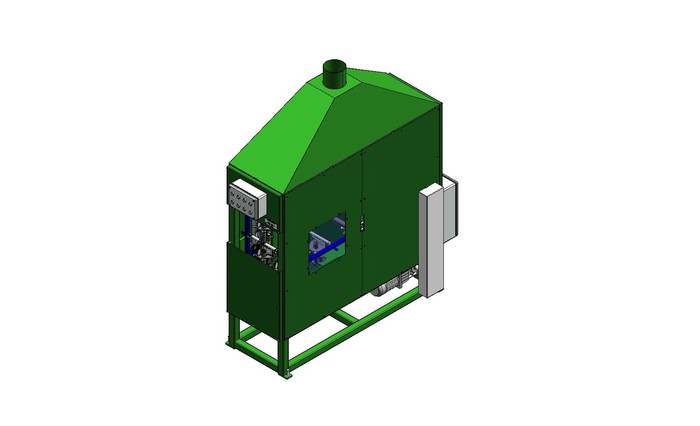

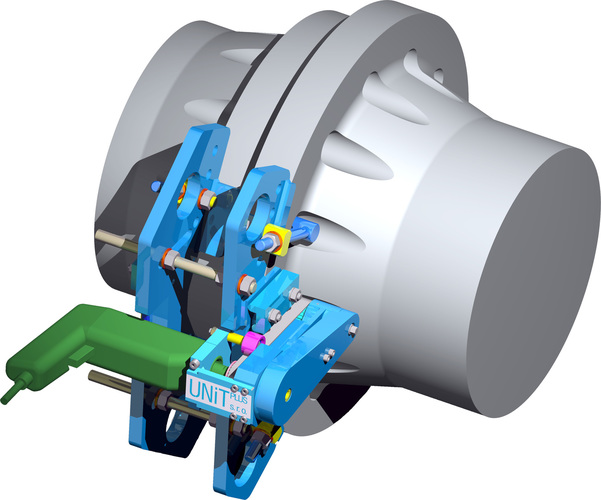

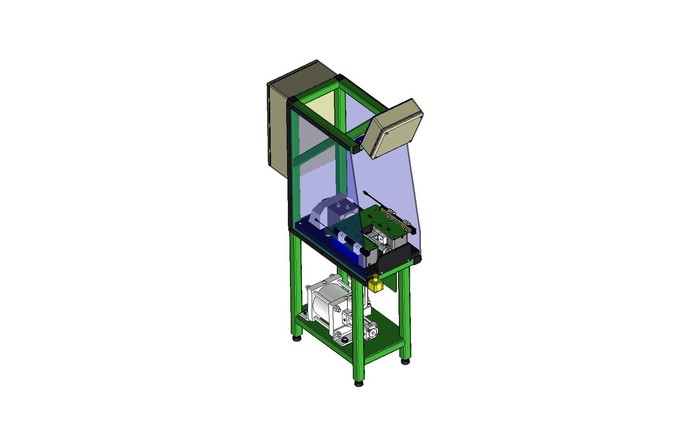

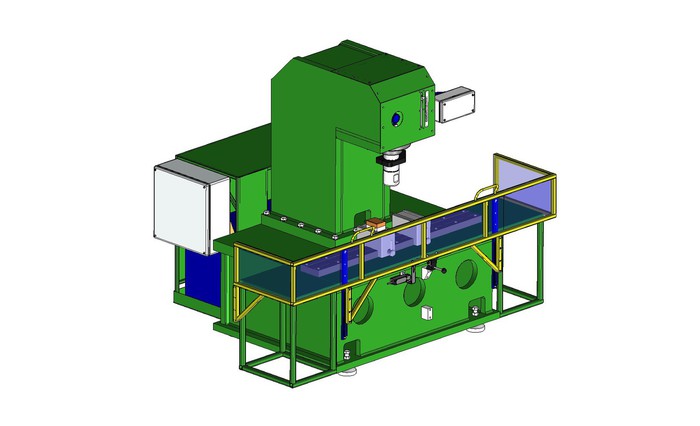

The drawings- and technical documentation is in our design department prepared on PCs by means of the powerful 3D Solid Edge modular system. Basic calculations are verified by the MITCalc and TDS-TECHNIK calculation programs. Strength calculations are performed by the finite elements method using the Solid Edge module software. In addition, we offer the preparation of complete drawing documentation for manufacture according to customer’s specific request.

Design work provided most often

• Creation of 3D model of a making based on drafts or else by original spare parts to which the customer has no longer drawings available.
• Preparation of  drawing documentation for manufacturing.
• Preparation of assembly drawings including the parts list.
